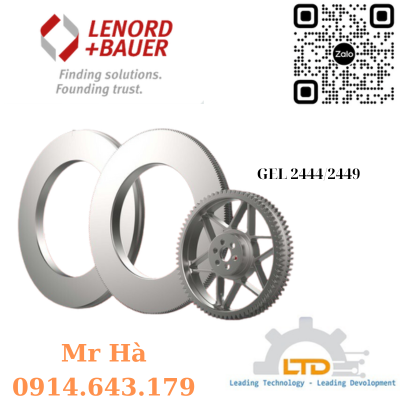

Bộ mã hoá GEL 2444/2449 | Lenord Bauer GEL 2444/2449 | Đại lý Lenord Bauer tại VN
With the reference marks tooth, flag or groove
- Customer-specific adaptations possible (individual inner diameter, number of teeth, bores, threads, keyways)
- Multifunctional design allows the measuring gear to be used e.g. as a bearing cover
- Together with the MiniCODERs, the measuring gears form a non-contact measuring system for speed and position detection
| Technical data | Measuring gears | |
|---|---|---|
| Area of application | Milling spindles, grinding spindles and workpiece axes in machine tool construction, torque motors, test bench motors | |
| Number of teeth | 64 to 1024 | |
| Width | 8.6 and 10 mm (others on request) | |
| module | 0.3 to 1.00 | |
| material | 16MnCr5, stainless steel optional | |

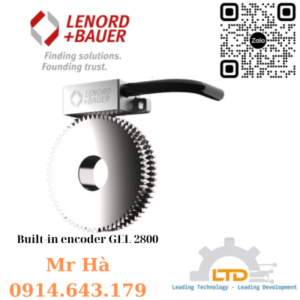

| product | GEL 2444/2449 | GEL 2444xM/GEL 24449M | GEL 2800 |
|---|---|---|---|
| Reference mark | without tooth flag groove |
Tooth
banner |
without |
| Mobile service device | GEL 211 CS0 | GEL 211 CSS | GEL 211 CST |
| Accesories | PK211C-244xK- PK211C-244xK-W |
PK211C-244xM-E PK211C-244xM-W |
PK211C-2800-E PK211C-2800-W |
