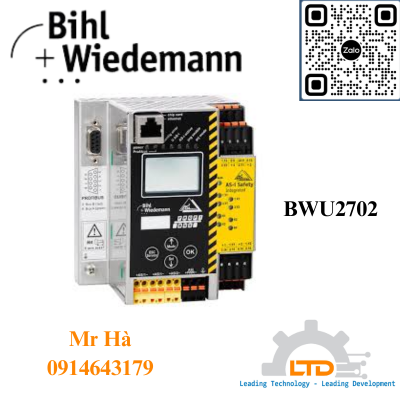

BWU2702 | Bihl+Wiedemann BWU2702 | Thiết bị giám sát BWU2702
BWU2702 ASi-3 PROFIBUS Gateway with integrated Safety Monitor, 2 ASi masters, 1 power supply for 2 ASi networks, 4 digital inputs, expandable to max. 62 x 2 channels safe inputs, 1922 x 2 channels safe inputs in max. configuration, 4 release circuits (2 x relay outputs and 2 x electronic safe outputs), expandable to max. 32 safe outputs, 992 safe outputs in max. configuration, Safe Link, diagnostic and configuration via Ethernet diagnostic interface, duplicate address recognition, ASi fault detector, programming in C optional, IP20
Technical data
| Fieldbus interface | PROFIBUS |
| Safety communication | Safe Link |
| Model | Gateway with integrated Safety Monitor |
| Inputs Safety | no local safe inputs |
| Outputs Safety | 4 release circuits, 2 x relay, 2 x electronic safe outputs |
| Number of ASi networks, number of ASi Master | 2 ASi networks, 2 ASi-3 Masters |
| Integrated decoupling, ASi current measurement in the gateway | yes, max. 4 A/ASi network |
