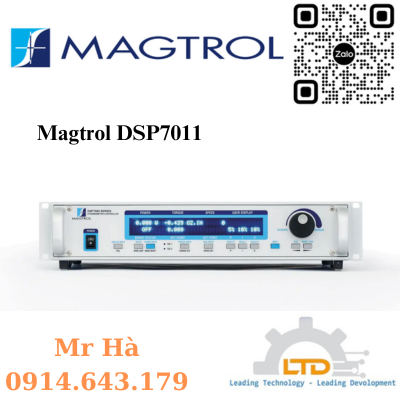

DSP7011 | Magtrol DSP7011 | Bộ điều khiển lực kế DSP7011

Magtrol’s new DSP7010 Series Dynamometer Controller is an upgraded version of the DSP7000, providing superior motor testing capabilities by using state-of-the-art digital signal processing technology. Designed for use with any Magtrol Hysteresis, Eddy-Current or Powder Brake Dynamometer, Magtrol In-Line Torque Transducer or auxiliary instrumentation, the DSP7010 both controls the dynamometer and provides digital readouts on the front panel. New features of the DSP7010 include:

• EMC hardening for better performance in high noise environments.
• IO and GPIB included as standard equipment.
• Speed and torque accuracy reading improved to 0.01%.
• Analog I/O accuracy improved to 0.05%.

In the laboratory, the DSP7010’s high sample rate provides superior resolution for data acquisition and curve plotting. This allows for capturing more usable motor test data during switching, breakdown and other transitional areas of the motor test curve. For production and incoming inspection, the DSP7010 displays torque, speed and power at all times, allowing the Controller to be used as a manual stand-alone unit or as part of a complete PC system.

The DSP7010 is available in two models. The DSP7011 is a single channel, low cost and easy to use option. The DSP7012 is a dual channel version that enables the support of two testing instruments with independent or tandem configurations and two fully independent control loops.
