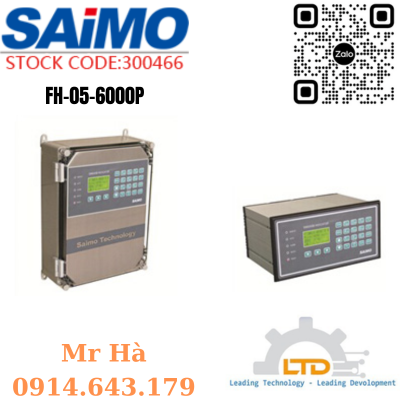

Saimo feeder controller has two types of FH-05 and FH-02 (old model 6105 and 6105B) type. FH-05 (6105) is based on 32-bit microprocessor control, the display uses 320X240 dot matrix LCD large screen display. FH-02 (6105B) is based on CPU with 8-bit microprocessor, 128X64 dot matrix display with liquid crystal display.
Main features and features:
● Digital Instrumentation: provide accurate, drift-free performance;
● automatic zero adjustment: through a simple operation, the instrument will automatically calculate and establish a new zero:
● Automatic calibration: to provide users hang code calibration chain code calibration, electronic calibration and a variety of physical calibration automatic calibration mode;
● zero tracking: the system can automatically zero tracking;
● programmable features: programmable Instrumentation input and output ports to meet the requirements of different users;
● filter choices: filter time is adjustable;
● zero dead zone: eliminate the dead zone by setting zero interference small flow;
● speed input options: choose both internal and external speed input;
● enter password: protection parameters to prevent human modification;
● fault self-diagnosis: can Multi-channel load cell failure to self-diagnosis
Instrument parameters:
● Enclosure
Panel Mount: Dimensions: 299 x 154 x 203mm
Opening size: 142 X 287mm
● Temperature
Operating temperature: -10 ~ 50 ℃
Storage Temperature: -40-701C
● power supply: 220VAC, 50Hz
● digital signal input / output:
Three-way programmable digital input the instrument accepts input from a variety of switching equipment;
four programmable digital output (relay, passive contact) signal is used to provide a variety of information or trigger a variety of auxiliary equipment;
● speed input: single speed pulse input from the speed sensor:
● analog input / output:
Input: load cell millivolt signal;
Output: one for standard 0-20mA or 4-20mA current output flow;
● control: way PID regulator control output;
● communication: optional RS232 or RS485 communication interface, PROFIBUS fieldbus interface (for increased input / output interfaces and other communication, please contact with the factory.).
