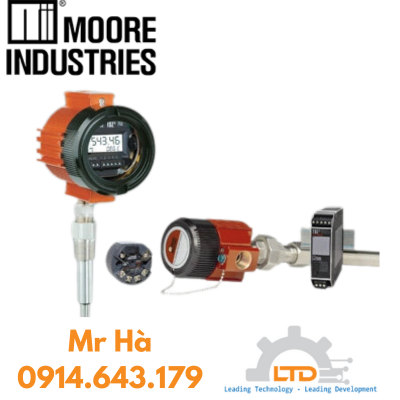

HZ/TPR/4-20 mA/12-42DC-VTD, Moore HZ/TPR/4-20 mA/12-42DC-VTD, Moore Industries-Vietnam

Dual Input Smart HART Temperature Transmitter
TDZ³/PRG/4-20MA/12-42DC [BH2NGE] pipe mount
Programmable temperature transmitter with digital indicator and Hart® Protocol
input : A. Pt.100 to 1000, Ni-120, Cu-10, 2, 3, 4 wire
B. Thermocouple J,K,E,N,T,R,S,B & C
C. mV : -50 +1000 mV
D. Resistance 2, 3 wire 0-4000 Ohm including potentiometers (resolution : 20 BIT)
range : any range programmable
output : 4-20 mA 2 wire current loop (also 20-4mA)(resolution 16 BIT)
load : 0-1500 Ohm (600 Ohm at 24 Vdc power)
Hart® protocol : standard HFC
power supply : 12-42 Vdc
maximum accuracy : including linearity error : 0,014°C (RTD)
output temperature linear
response : 100 msec. max. for 90% step
equipped with sensor diagnostic program
over/under range : limit adjustable (3,8-21,6 mA)
open input (burn-out) configurable between 3,6 or 23,6 mA
equipped with a 5 digit LCD indicator, indicating input or output or toggles between both
range : -99999 to +99999
configurable engineering units
128 segment linearizing
ambient temperature : -40 +85°C, indicator -20 +65°C
input and output are galvanically isolated 500 V RMS
RFI/EMI protected to 20 V/m 20-1000 Mhz
CE conform
