MI-DM0138 DM1383-A7E13B0E5NBK-457mm

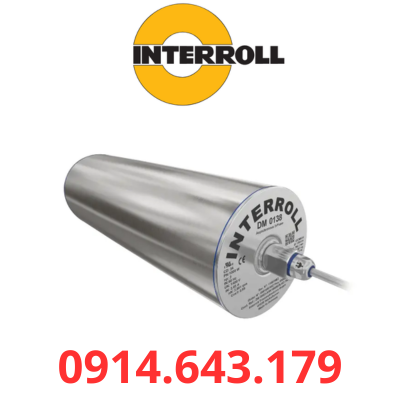

Product Name DM 0138 Asynchronous 3-Phase
IP Rating 69K
Shell Length (SL) 450,0 mm Face Width (FW) 457,0 mm
Between Frames (EL/LW/BF) 480,0 mm Overall Length (AGL) 530,0 mm
Power 370 W Poles 4
Torque [Nm] 168,7 Belt Pull Force 2.155 N
Gear Ratio (i) 73,80 Gear Material Casted Steel: GGG-40
Velocity at Frequency 1 0,15 m/s
Frequency 1 50 Hz External Wiring Diagram M34
High Voltage 400 V Low Voltage 230 V
Current, High Voltage 1,01 A Current, Low Voltage 1,74 A
Velocity at Frequency 2 0,19 m/s
Frequency 2 60 Hz
High Voltage 2 460 V Low Voltage 2 230 V
Shell Material Stainl. Steel: 1.4301 / 304
Shell Diameter (A) 156,6 mm Shell Diameter (B) 156,6 mm
Shell Shape Profile
Shell Option Type UNI Series MPB
Coating Teeth Quantity (Z) 10
Coating / Treatment Material NBR Rubber Coating Material Hardness 70 Shore A
Coating Colour White Coating Application Type Hot Lagging
Housing A Feature Standard Housing B Feature Standard
Housing A Material Stain.Steel: 1.4301/304 Housing B Material Stain.Steel: 1.4301/304
Shaft A Shape Replacement 138i Standard Shaft B Shape Replacement 138i Standard
Shaft A Material Stainl. Steel: 1.4305 / 303 Shaft B Material Stainl. Steel: 1.4305 / 303
Shaft A Diameter (D) 30,0 mm Shaft B Diameter (D) 30,0 mm
Shaft A Flat Width (F) 20,0 mm Shaft B Flat Width (F) 20,0 mm
Shaft A Flat Length (C) 25,0 mm Shaft B Flat Length (C) 25,0 mm
Oil Type Food Grade Synthetic Oil Viscosity 68
Electrical Connection Elbow Connector Electrical Connection Material Stainl. Steel: 1.4305 / 303
Power Cable Length 10,0 m Power Cable Type Screened; Non Halogen Free
Min Ambient Temperature -25 °C Max Ambient T
