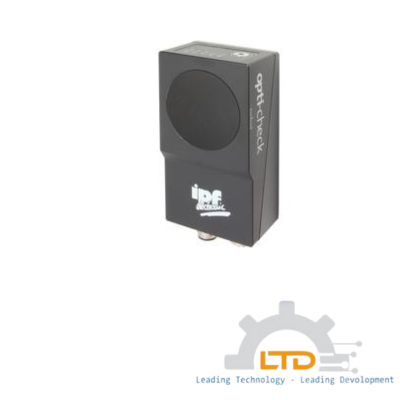

Camera sensors are used to simultaneously check various properties of objects (e.g., completeness, dimensional accuracy, position, damages, labeling). This takes place independent of the component position virtually in real time. Camera sensors are image processing systems that combine image sensor and image processing computer with image processing software in a metal housing. Depending on the version, lens and illumination unit are also integrated in the housing or must be additionally mounted. The camera sensors are set using an intuitive software program. On the device, object-specific check programs can be stored that contain the respective feature checks. These programs can be activated depending on the object that is to be inspected. The rugged housing design makes possible use under harsh environmental conditions.
- Number of digital outputs
- 5
- Number of digital inputs
- 5
- Number of switching outputs
- 5
- Type of switching function
- Programmable/configurable
- Type of electrical connection
- Connector M12
- Type of switching output
- PNP
- Rated switching current
- 100mA
- Property picture system
- Black and white
- Setting procedure
- Application software
- Error image memory
- 32
- Short-circuit protection
- Yes
- No-load current
- 208mA
- Power consumption
- 5VA
- Measuring time for high speed
- 100fps
- Number of pins
- 12
- Reverse polarity protection
- Yes
- Type of plug-in contact, communication interface
- Female (socket)
- Type of plug-in connection, communication interface
- Connector M12
- Number of pins of interface connection
- 4
- Supported communication interface
- Ethernet
- Operating voltage (DC)
- 18 – 30V
