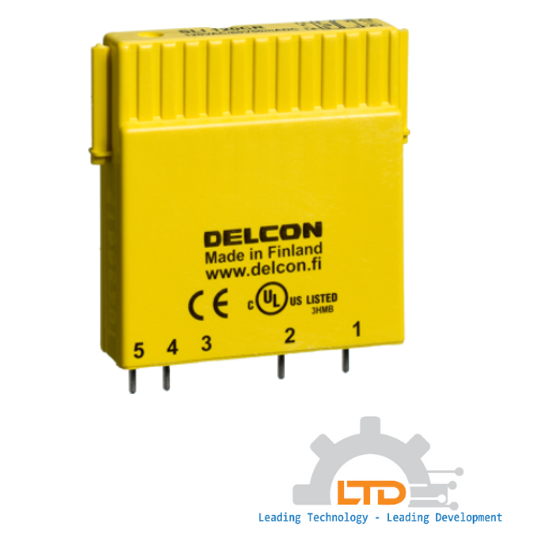

SLI230CR | SLI230CR Delcon | Rơ le bán dẫn Delcon SLI230CR | Đại lý Delcon Việt Nam
| Nominal load voltage | 24 V DC |
| Nominal input voltage | 240 V AC |
| Rated load current | 50 mA |
| MTTF (MIL-HDBK-217F) | 17 years |
| Warranty | 10 years |
Control circuit
| Input voltage max. | 265 V AC |
| Switch-on voltage | 160 V AC |
| Switch-off voltage | 120 V AC |
| Power consumption | 1,2 W |
| Input impedance | 50 kΩ |
Load circuit
| Load current range | 0 – 50 mA, no minimum load required |
| Load voltage range | 0 – 60 V DC, no minimum load required |
| Leakage current | 1 μA |
| Voltage drop | 0,2 V |
| Switch-on time | 50 ms |
| Switch-off time | 50 ms |
Insulation
| Insulation method | Pulse transformer (an unique feature for Delcon relay compared to opto) |
| Test voltage input/output | 4600 V ACrms / 1 s |
| Overvoltage category | III |
| Pollution degree | 2 |
| Air/creepage distance I/O | 8 mm |
General data
| Conductor size, screw terminal | 2,5 mm2 |
| Conductor size, spring terminal | 0,75 – 2,5 mm2 |
| Operating temperature | -40 °C to +70 °C |
| Weight | 40 g |
| Housing material flammability | UL 94 V-0 |
| Package size | 10, 50 and 100 |
